Description

Disclaimer (Digital Product)

This product is a digital production pack, not a physical or assembled PCB. You will receive Gerber files, BOM, Schematics and documentation required to manufacture the PCB Module. No physical boards are shipped.

Download Product Datasheet: Download Now

Overview

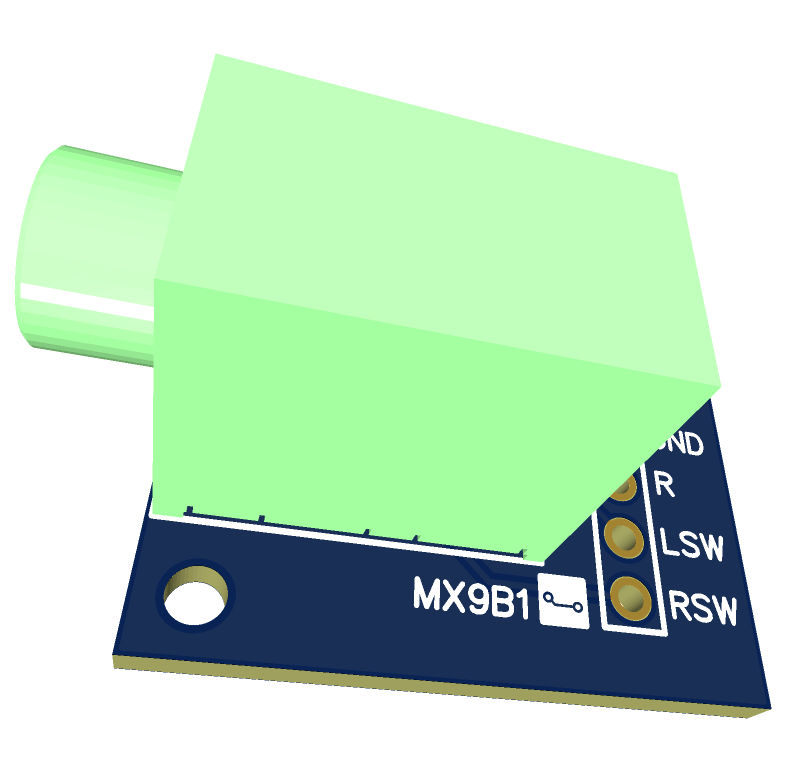

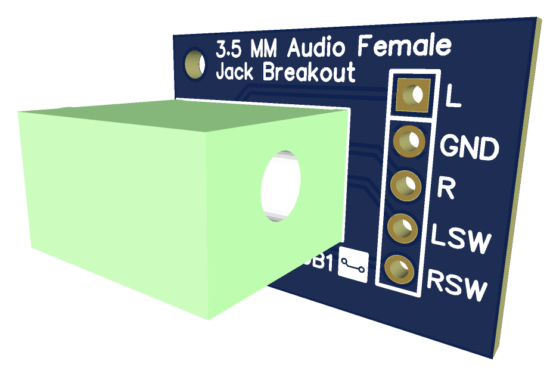

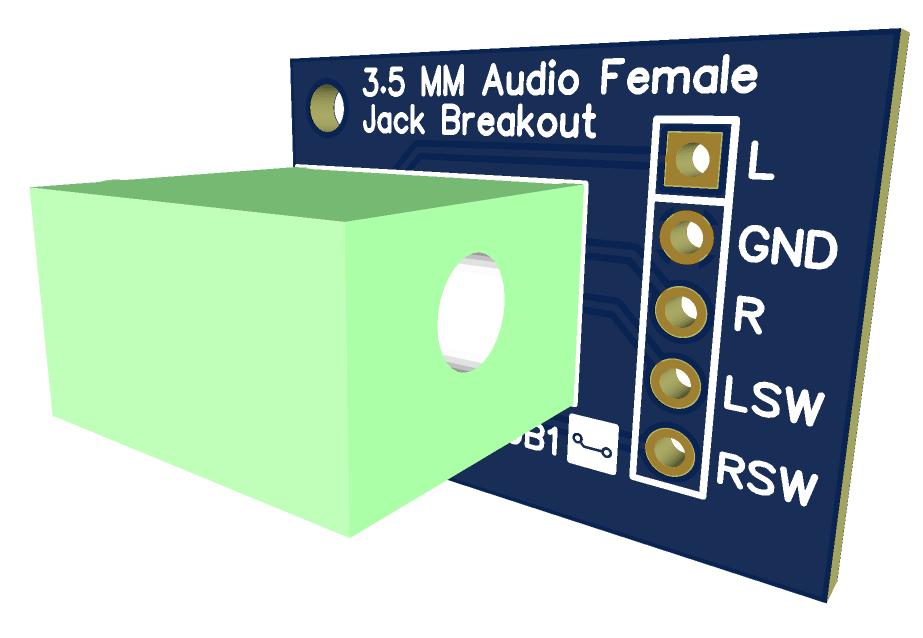

The 3.5 MM Audio Female Jack Breakout Module MX9B1 is a compact and breadboard-friendly PCB designed to simplify audio interfacing in electronic projects. It converts a standard 3.5 mm stereo audio jack into clearly labeled 2.54 mm header pins, allowing quick and reliable connections to microcontrollers, amplifiers, and audio circuits.

This module breaks out the Left (L) and Right (R) audio channels along with Ground (GND), making it ideal for stereo audio input or output applications. In addition, the onboard switch pins (LSW and RSW) enable plug-in detection and automatic signal routing, useful for smart audio switching and embedded system control.

With its compact footprint and standard pin spacing, the MX9B1 is perfect for breadboard prototyping, DIY audio projects, and educational use. Whether you’re building an audio amplifier, testing headphone outputs, or adding audio capability to an Arduino or ESP32 project, this breakout module offers a simple and reliable solution.

What You Will Receive (Digital Download)

This product pack will include:

• PCB Gerber File
• Bill of Materials (BOM)
• Pick and Place (CPL)
• Full product datasheet
• Documentation pack (README, License, T&C)

These files can be directly uploaded to PCB manufacturers such as JLCPCB, PCBWay and other manufacturers for fabrication.

Pinout Description

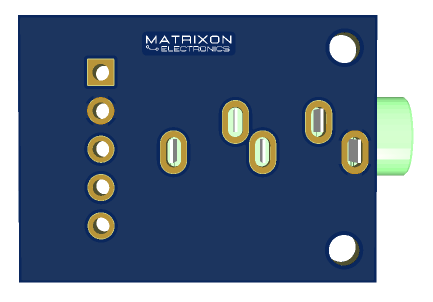

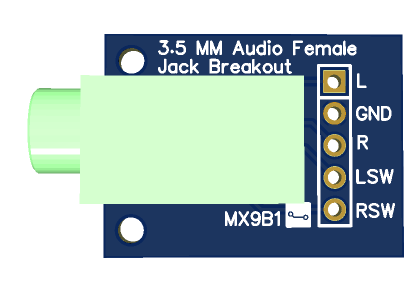

PCB Layout & Dimensions
